Scaphoid Fractures

What are scaphoid fractures?

The scaphoid bone is one of eight small bones that make up the “carpal bones” of the wrist.  There are two rows of bones, one closer to the forearm (proximal row) and the other closer to the hand (distal row).  The scaphoid bone is unique in that it spans the two rows (see Figure 1).  This puts it at extra risk during injury, which accounts for it being the most commonly fractured carpal bone.

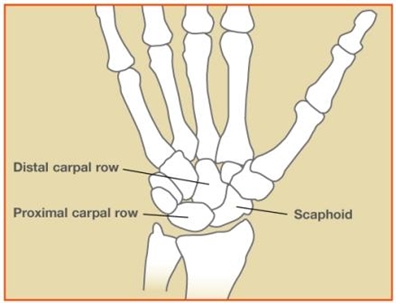

Figure 1: The scaphoid bone is unique in that it spans the two rows of wrist bones.

How do scaphoid fractures occur?

Fracture of the scaphoid bone occurs most frequently from a fall onto the outstretched hand. Typically there is pain initially, but the pain may decrease after days or weeks. Bruising is rare, and swelling may be minimal. Since there is no deformity, many people with this injury mistakenly assume that they have just sprained their wrist, leading to a delay in seeking evaluation. It is common for people who have fractured this bone to not become aware of it until months or years after the event.
Image related to Scaphoid Fractures | Fractures and Sprains Houston TX

Diagnosis of scaphoid fractures

Scaphoid fractures are most commonly diagnosed by x-rays of the wrist. However, when the fracture is not displaced, x-rays taken within the first week may not reveal the fracture. A non-displaced scaphoid fracture could thus be incorrectly diagnosed as a “sprain” because the x-ray was “negative.” Therefore a patient who has significant tenderness directly over the scaphoid bone (which is located in the hollow at the thumb side of the wrist, or “snuffbox”) should be suspected of having a scaphoid fracture and be splinted (see Figure 2). The patient should be re-evaluated about two weeks later, and if findings are still suspicious for a scaphoid fracture, x-rays at that time will usually show the fracture due to changes in the bone at the edge of the fracture. In cases where waiting two weeks in a splint may cause undue hardship, or if the x-rays remain negative but the clinical exam is still suspicious, more advanced imaging techniques may be utilized, such as CT scan, bone scan, or MRI.

Figure 2:  Significant tenderness directly over the scaphoid bone (which is located in the hollow at the thumb side of the wrist).
Image related to Scaphoid Fractures | Fractures and Sprains Houston TX

Treatment of scaphoid fractures

If the fracture is non-displaced, it could be treated by immobilization in a cast. The cast usually covers the forearm, hand, and thumb, and sometimes includes the elbow for the first phase of immobilization. Although the fracture may heal in as little as 6 weeks, the healing can often be delayed. One reason for this delay is the variable blood supply to different parts of the scaphoid bone. The fracture can disrupt the bone’s blood supply, impairing the healing. Part of the bone might even die after fracture due to loss of its blood supply, particularly in the proximal third of the bone, the part closest to the forearm. If the fracture is in this zone, or if it is at all displaced, surgery is more likely to be recommended. With surgery, a screw or pins are inserted to stabilize the fracture, often with a bone graft to help heal the bone (see Figure 3). Sometimes screw fixation surgery is recommended—even in non-displaced cases—so as to avoid prolonged casting.

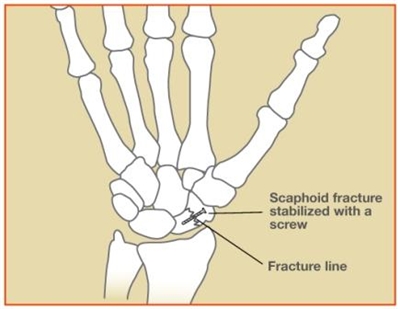

Figure 3:  A screw or pins are placed to stabilize the fracture.

Complications of scaphoid fractures

Non-union: If a scaphoid fracture goes unrecognized, it often will not heal. Sometimes, even with treatment, it may not heal because of poor blood supply. Over time, the abnormal motion and collapse of the bone fragments may lead to mal-alignment within the wrist and subsequent arthritis. If caught before arthritis has developed, surgery may be performed to try to get the scaphoid to heal.

Avascular necrosis: A portion of the scaphoid may die because of lack of blood supply, leading to collapse of the bone and later arthritis. Again, if arthritis has not developed, surgery to try to restore circulation to the bone may be attempted.

Post-traumatic arthritis: If arthritis has already developed, salvage-type procedures may be considered, such as removal of degenerated bone or partial or complete fusion of the wrist joint.
The information on this webpage is based on material from the American Society for Surgery of the Hand and is for educational purposes only.
